The classic Grilyato is the most practical commercial ceiling system, which, in addition to its effective and monolithic visual appeal, is distinguished by high operational and safety features. It allows you not only to conceal existing communications in the ceiling (wires, drainage, fire protection, and ventilation systems), but also provides easy access and serviceability to them at any time and at any area.

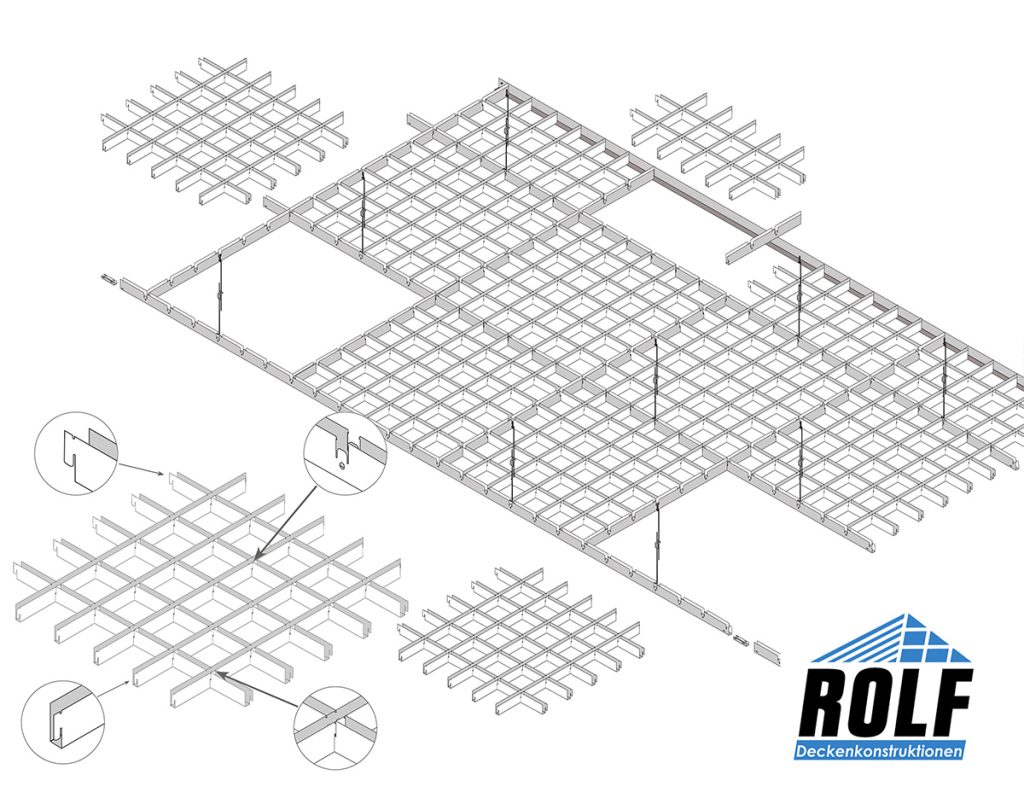

ROLF Grilyato System Components:
1. ROLF Grilyato U15-M 2400x40mm
Main carrier profile
2. ROLF Grilyato U15-T 600x40mm
Partitional profile
3. ROLF Grilyato U15-G 600x40mm
Lower grid profile
4. ROLF Grilyato U15-B 600x40mm
Upper grid profile
5. ROLF Grilyato L 2400x19x24mm
Perimeter (wall) profile
6. ROLF U15-C100
Connector for main carrier
7. ROLF A-ROD 600mm
Upper suspension rod
8. ROLF B-ROD 250mm
Lower suspension rod
9. ROLF H leveling Hanger (Butterfly)
Adjustable level hanger
10. ROLF U15 clipper
Spring-type clip hanger
11. Concrete anchor M8 with hook
Concrete anchor M8 with hook
*All components of the ROLF Grilyato systems are manufactured in accordance with European standards, high-quality, reliability, and safety standards. The materials used are lightweight, solid, and non-combustible.*
50×50mm cell (internal space 35mm)
60×60mm cell (internal space 45mm)
75×75mm cell (internal space 60mm)
86×86mm cell (internal space 71mm)
100×100mm cell (internal space 85mm)
120×120mm cell (internal space 105mm)
150×150mm cell (internal space 135mm)
200×200mm cell (internal space 185mm)
COMPONENTS & ACCESSORIES
DATASHEET
- მასალა: 0,25მმ პრემიალური გალვ. მეტალი თერმული დაფერვით
- დაფერვა: 20um ორმხრივი
- საბაზო ფერები:
შავი RAL 9005
ვერცხლისფერი RAL7044
თეთრი RAL9003
ანტრაციტი RAL7024
რუხი RAL7000
წითელი RAL3020
ალუმინისფერი RAL9006
ყავისფერი RAL1011
ლურჯი აზური RAL5009
ხის ფაქტურა - პროფილის სიგანე: 15მმ
- პროფილის სიმაღლე: 40მმ
- კალიბრაცია: +-0.05მმ
- უჯრედის ზომა: 50×50მმ; 60×60მმ; 75×75მმ; 86×86მმ; 100×100მმ; 120×120მმ; 150×150მმ; 200×200მმ
- Material: 0,25 mm hochwertiges verzinktes Eisen
- Pulverbeschichtung: 20 µm beidseitig
- Grundfarben:
Schwarz RAL9005,
Grau RAL7044,
Weiß RAL9003,
Anthrazit RAL7024,
Fehgrau RAL7000,
Rot RAL3020,
Aluminium RAL9006,
Braunbeige RAL1011,
Azurblau RAL5009,
Holzdekor - Profilbreite: 15 mm
- Profilhöhe: 40 mm
- Kalibrierung: +-0,05 mm
- Quadratgrößen: 50x50mm, 60x60mm, 75x75mm, 86x86mm, 100x100mm, 120x120mm, 150x150mm, 200x200mm
- Material: 0,25 mm Premium Grade Galvanized iron
- Powder coating: 20um doubleside
- Base colors:
Black RAL9005,
Grey RAL7044
White RAL9003
Antracite RAL7024
Squirrel grey RAL7000
Red RAL3020
Aluminum RAL9006
Brown beige RAL1011
Azzure Blue RAL5009
Wood Pattern
- Profile width: 15mm
- Profile height: 40mm
- Calibration: +-0.05mm
- Square sizes: 50x50mm; 60x60mm; 75x75mm; 86x86mm; 100x100mm; 120x120mm; 150x150mm; 200x200mm
- Материал: оцинкованное высшего качества толщиной 0,25 мм
- Покрытие: двухстороннее,20um
- Базовые цвета:
Черный RAL9005,
Серый RAL7044
Белый RAL9003
Антрацитовый RAL7024
Белично-серый RAL7000
Красный RAL3020
Алюминиевый RAL9006
Коричнево-бежевый RAL1011
Голубой RAL5009
Текстурированный под дерево - Ширина профиля: 15 мм
- Высота профиля: 40 мм
- Калибровка: ±0,05 мм
- Размеры квадратов: 50×50 мм; 60×60 мм; 75×75 мм; 86×86 мм; 100×100 мм; 120×120 мм; 150×150 мм; 200×200 мм
Selecting the right grid size for the Grilyato system is crucial to achieving the desired visual effect at an optimal cost. The widespread notion that smaller cells inherently reduce the visibility of the internal space is incorrect and an unbudget-friendly approach. Smaller cells typically result in higher costs per square meter and more complex access to communications (i.e., accessing communications without removing the grid). A properly chosen grid size can provide the same coverage and visual effect as a smaller cell (of course, only when the Grilyato is not used for decorative purposes).
When selecting the grid size, the ceiling height and the building’s visible space must be considered in relation to each other. It’s also important to take into account the natural visual range of the average human, which typically ranges from 16 to 25 degrees. Accordingly, your Grilyato system should provide coverage within this visual zone.
For selection, please refer to the drawings and charts below based on the standards provided:
| Profile type | Piece | 50×50 | 60×60 | 75×75 | 86×86 | 100×100 | 120×120 | 150×150 | 200×200 |
|---|---|---|---|---|---|---|---|---|---|
| Grilyato Module set 600×600 | pcs | 2.80 | 2.80 | 2.80 | 2.80 | 2.80 | 2.80 | 2.80 | 2.80 |
|
U15-M Main Carrier Profile |
pcs | 0.70 | 0.70 | 0.70 | 0.70 | 0.70 | 0.70 | 0.70 | 0.70 |
| U15-T Partitional profile | pcs | 2.80 | 2.80 | 2.80 | 2.80 | 2.80 | 2.80 | 2.80 | 2.80 |
| U15-G Lower grid profile | pcs | 30.58 | 25.02 | 19.46 | 16.68 | 13.9 | 11.12 | 8.34 | 5.56 |
| U15-B Upper grid profile | pcs | 30.58 | 25.02 | 19.46 | 16.68 | 13.9 | 11.12 | 8.34 | 5.56 |
| Perimeter (wall) profile | pcs | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 |
| U15-C100 Connector for main profile | pcs | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
| Upper suspension rod | pcs | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 |
| Lower suspension rod | pcs | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 |
| Adjustable hanging hanger | pcs | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 |
| Spring-type clip hanger | pcs | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 |
| Concrete anchor M8 with hook | pcs | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 |
